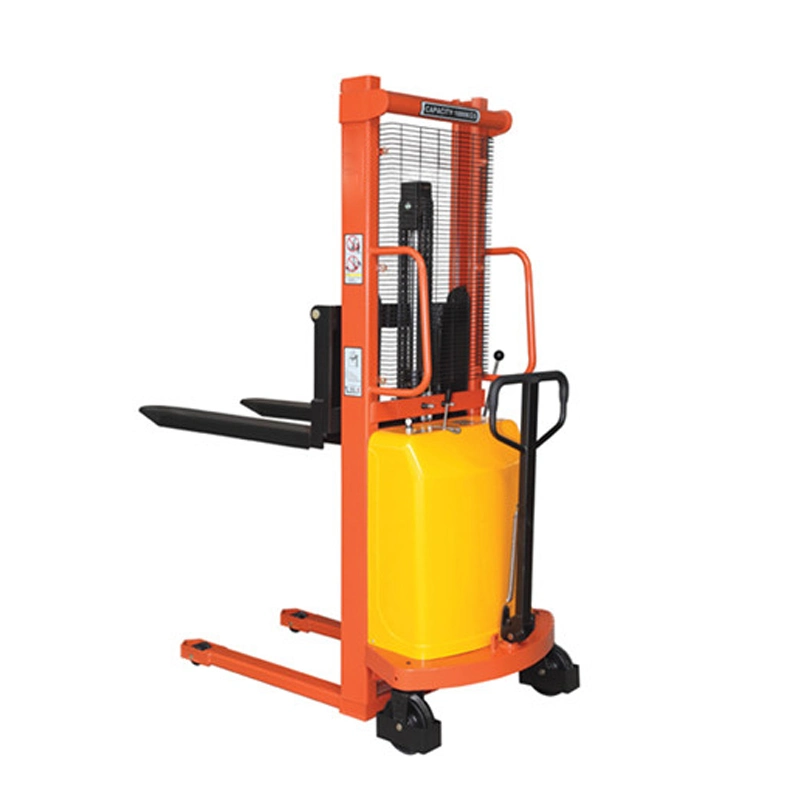

1.0ton 1.5ton 2.0ton 1000kgs 1500kgs 2000kgs Hydraulic Hand Forklift Stacker with Foot Pedal for Lifting Manual Stacker
| Model Number | HS10-20S | HS10-25S | HS10-30S | |
| Rated Capacity(Q) | kg | 1000 | 1000 | |
| Load Center(C) | mm | 400 | 400 | |
| Min.Fork Height | mm | 90 | 90 | |
| Max.Fork Height | mm | 2000 | 2500 | 3000 |
| Fork Length(H) | mm | 900 | 900 | |
| Fork Width(L) | mm | 220-900 | 220-900 | |
| Min.Turning Radius(E) | mm | 1250 | 1250 | |
| Wheel Base(R) | mm | 1100 | 1100 | |
| Front-Wheel Distance(Y) | mm | 210 | 210 | |
| Overall Length (X) | mm | 1340 | 1340 | |
| Overall Width (A) | mm | 950 | 950 | |
| Overall Heigth (B) | mm | 1810 | 1810 | 2060 |
| Overall Net Weight(H1) | kg | 350 | 355 | 370 |
product description:
1,high quality cylinder and imported seal ring.Greatly improved sealing performance.Reduce maintenance cost by using high grade national standard channel steel door frame to ensure
Longer and safer use
2,flexible movement, safe operation, labor saving
3, two door frame design, in line with the European standards of ENl757
4, adjustable fork, fork adjustment range of 200- 900rnm
5,adjust the fork width symmetrically to prevent unbalanced load
