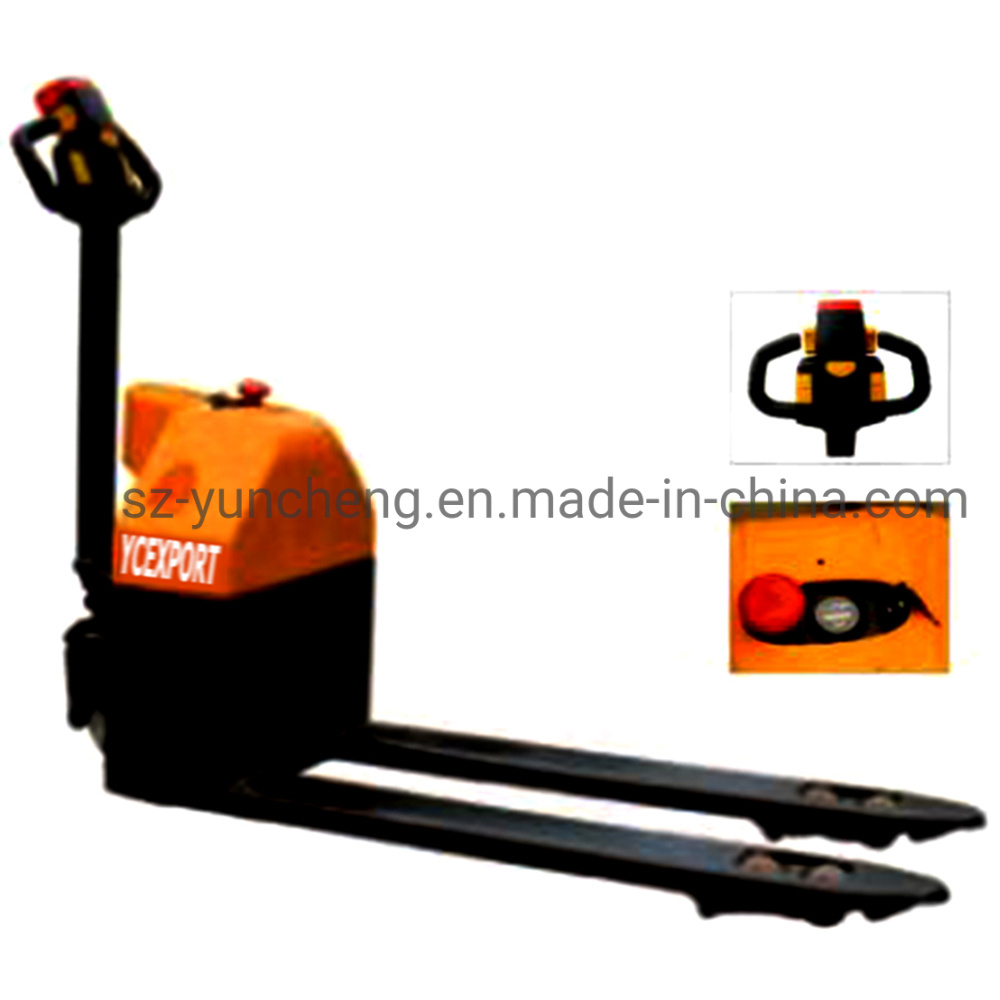

Electric pallet trucks, is one of being widely used material handling equipments, mainly applicable to transfer of cargo (cargo handling / material handing) in the workshop, warehouse, hotel, airport, railway station, gymnasium, office building, etc.
Parameters:
Annotation:
If you need wider internal distance between the two forks, we will recommend you our model # YC-EE20G-L, i.e. 680mm fork width.
Notes:
1,Warranty period: 12 months
2,Other loading capacity and size specifications upon request.
Much more details, please feel free to contact us.
Parameters:
| Model # | YC-EE20G-S |
| Loading capacity | 2000 KGS |
| Fork height (minimum) | 85mm |
| Fork height (maximum) | 205mm |
| Standard fork width | 560mm |
| Length of single fork | 1150mm |
| Max internal distance between the two forks | 560mm (narrow) |
| Overall length | 1630mm |
| Overall width | 685mm |
| Overall height | 1252mm |
| Minimum turning radius | 1255mm |
| Max driving speed/traveling speed/running speed | 5.6/3.8 (mm/s.) [unloaded/loaded) |
| Max lifting speed | 36/34 (mm/s.) [unloaded/loaded] |
| Driving motor/traveling motor | 0.75KW |
| Lifting motor | 0.80KW |
| Maintenance-free storage battery | DC24V/100Ah. x 2pcs |
| Charger (AC110V - AC250V) | Equipped |
| Net weight including storage battery | 275 KGS |
| Packaging | Wood case/plywood pallet |
If you need wider internal distance between the two forks, we will recommend you our model # YC-EE20G-L, i.e. 680mm fork width.
Notes:
1,Warranty period: 12 months
2,Other loading capacity and size specifications upon request.
Much more details, please feel free to contact us.
