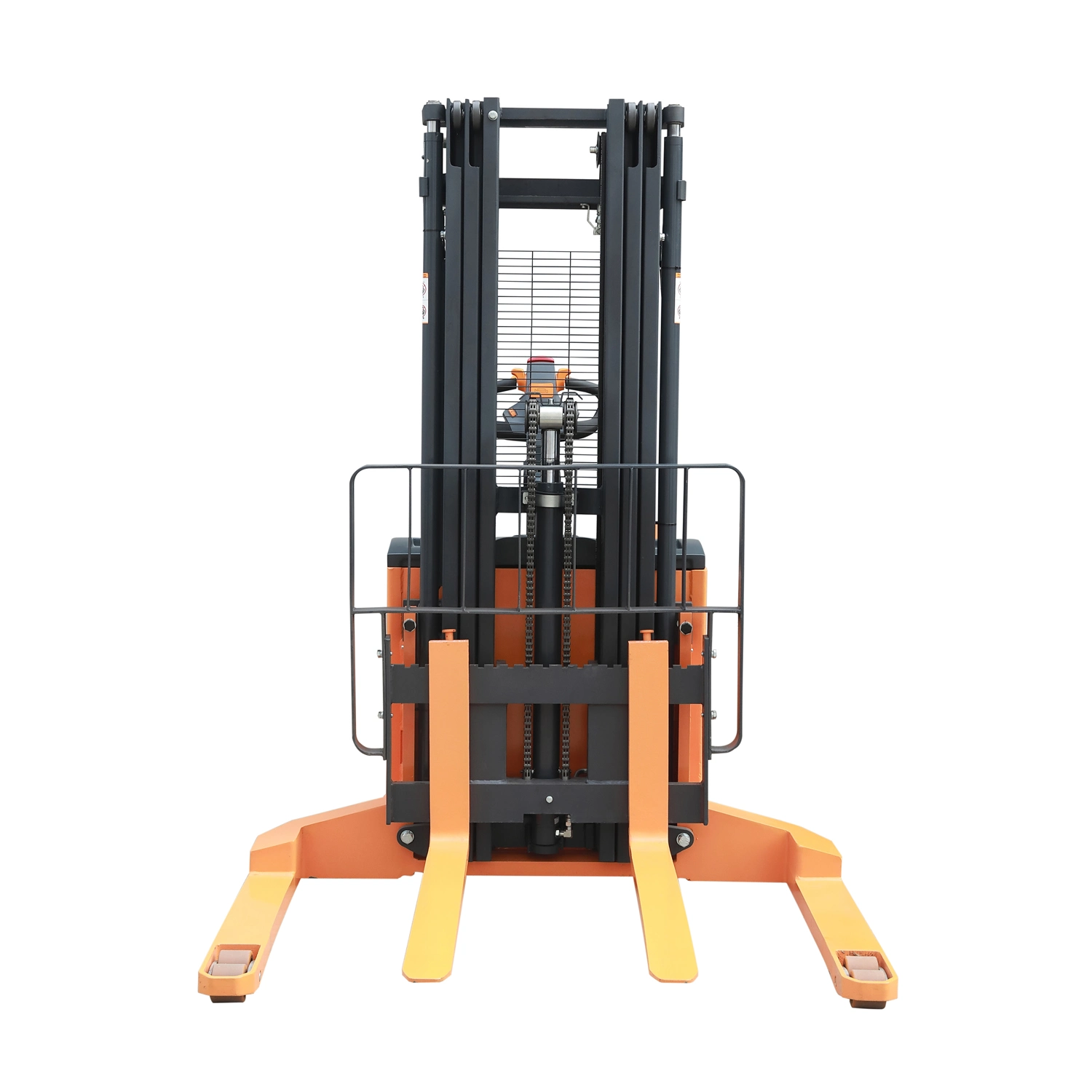

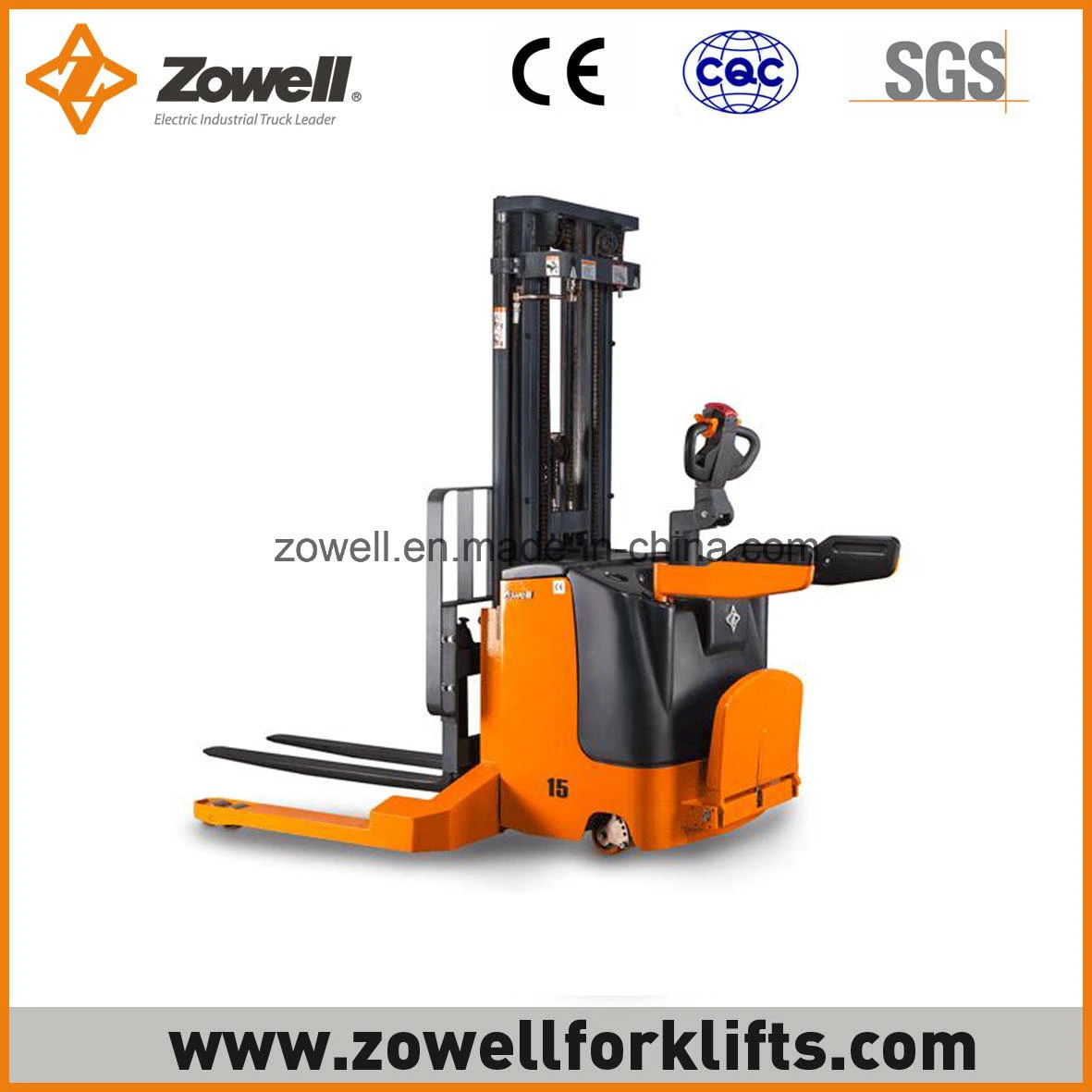

Electric Straddle Stacker 1.5ton Load Capacity 2.5m Lifting Height

Model: XEKLoading capacity: 1000kg, 1500kg, 2000kgLifting height: 1600mm to 5500mmBattery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteriesEmergency reversing device in the handle provides improved operating safety.

Featured Products

Model: XEK
Loading capacity: 1000kg, 1500kg, 2000kg
Lifting height: 1600mm to 5500mm

Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries

Emergency reversing device in the handle provides improved operating safety.

Emergency power disconnect switch.

Braking applied with handle upright and horizontal position, increasing the safety of the truck.

Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

The mast and the frame are dividable and exchangeable.

IdentificationProduct model XEK10AXEK10BXEK15AXEK15B
Power supply ElectricElectricElectricElectric
Operating type StandingPedestrianStandingPedestrian
Load capacityQ  Kg1000100015001500
Load center distanceC mm600600600600
Load distanceX mm430430490490
WheelbaseY mm1280128013401340
WeightWeight (without battery)Kg700680781761
Axle loading, loaded
drive end / load end
Kg736/1164728/1152911/1620903/1607
Axle loading, unloaded
drive end / load end
Kg612/288598/282690/340677/334
WheelTyres PolyurethanePolyurethanePolyurethanePolyurethane
Tyre size  drive endmm250×80250×80Φ250x80Φ250x80
Type size  load endmm80×7080×70Φ80x70Φ80x70
Balancing wheel sizemm125×50125×50Φ125x50Φ125x50
Wheels number (x=drive wheel) drive end/load end 1x-2/41x-2/41x-2/41x-2/4
Tread width drive endmm690690690690
Tread width load endmm1390139013941394
DimensionsHeight data is on the bottom - Height data choices
Forks height,loweredh5 mm35354040
Height of handle in drive position (Max/Min)h6 mm1350/9851350/9851350/9851350/985
Overall lengthL1 mm1950189020702010
Length to face of forksL2 mm797737925865
Overall widthb1 mm1270127012701270
Inside width at the end of legb2 mm1510151015101510
Fork dimensions (Forging)s/e/l mm100/35/1070100/35/1070100/35/1070100/35/1070
Forks widthb3 mm200-800200-800200-800200-800
Minimum ground clearancem  mm30303030
Aisle width for pallets 800x1200 lengthwaysAst mm2305222023502260
Turning radiusWa mm1545146016101520
PerformanceTravel speed  loaded/unloadedkm/h5.2/64/55.2/64/5
Lift speed  loaded/unloadedmm/s90/12090/12090/12090/120
Lowering speed loaded/unloadedmm/s125/80125/80125/80125/80
Max gradeability loaded/unloaded%5/85/85/85/8
Service brake ElectromagneticElectromagnetic
Electric MotorDrive motor ratingkW1.2(DC) 1.5(AC)1.2(DC) 1.5(AC)
Lift motor ratingkW2.2/3.02.2/3.02.2/3.02.2/3.0
Battery voltage / nominal capacityV/Ah24/180(210)24/210(240-280)
Battery weightKg210(230)230(250-280)
OthersType of drive control MOSFET control
Noise level at operator's eardB(A)<70

Height Data Choices
 Mast typeLiftHeight with mast closedFree LiftHeight with mast Extended
 h3 (mm)h1 (mm)h2 (mm)h4 (mm)
 Single1600198016001980
 Dual25001750/2956
 Dual30002000/3465
 Dual35002250/3965
 Dual40002500/4465
 Triple4500205514904979
 Triple4800215515905279
 Triple5000221516705479
 Triple5500238518305979
