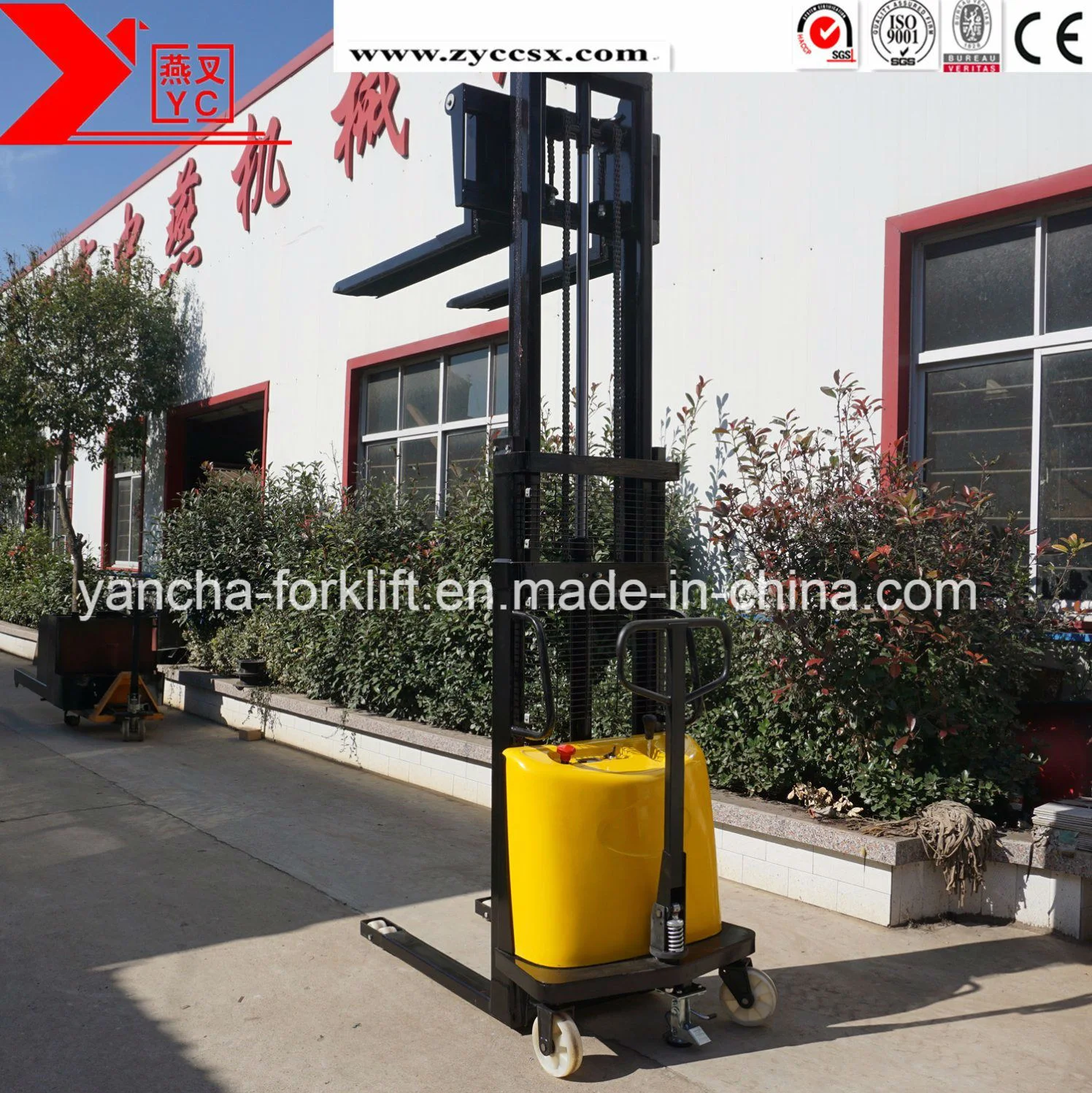

Semi-electric stacker with cheap price but excellent quality
3.Optional color & Beautiful paitings
4.Customized fixed legs
Features
1.Raise and lower using batter power (included)
2.Heavy duty C section mast frame for extra strength
3.Ergonomic safety control handle for one-hand operation
4.Built-in digital battery level gauge
5.Manual handle for steering.
6.Adjustable forks can handle most standard pallets
7.Parking brake for safe raising and lowering
8.Protective screen
9.Rear nylon wheels with protectors
10.Front nylon wheels
11.Sideways battery charger for rapid charging operation
12.Low cost solution for moving pallets
13.Great for smaller warehouses or retail floors
14.Moves pallets in tight locations
15.For uses where pollution or noise are not allowed
Parameter
Factory Introduction
Jiangsu Zhongyan Forklift Manufacturing Co., Ltd was established in 1997, covering an area of over 21800 square meters, which is high-tech environmentally friendly enterprise specialized in research, production and marketing.
We adhere to the operation philosophy of "Quality Services, Technology Innovation, Integrity Management and Lenient towards Others "and take the advantage of leading technology, sophisticated equipment and complete testing measures to professionally study and manufacture environment friendly and high intelligent reach forklift truck, electric pallet truck etc.
We attach importance to institutionalized and standardized construction, and established such regulations as pre-delivery inspection, product recall and product exchange/compensation for defect products. We can design and customize the needed products according to the practical usage situation and customers' requirements. For more than 20 years, Zhongyan gained high reputation among customers from all over the world with its high quality and sound after-sale services.
Package
Warranty
One year warranty and the battery is 6 months warranty
Contact Us
Details
1.Stable moving speed.
2.Foot brake1.Stable moving speed.
3.Optional color & Beautiful paitings
4.Customized fixed legs
Features
1.Raise and lower using batter power (included)
2.Heavy duty C section mast frame for extra strength
3.Ergonomic safety control handle for one-hand operation
4.Built-in digital battery level gauge
5.Manual handle for steering.
6.Adjustable forks can handle most standard pallets
7.Parking brake for safe raising and lowering
8.Protective screen
9.Rear nylon wheels with protectors
10.Front nylon wheels
11.Sideways battery charger for rapid charging operation
12.Low cost solution for moving pallets
13.Great for smaller warehouses or retail floors
14.Moves pallets in tight locations
15.For uses where pollution or noise are not allowed
Parameter
| UNIT | TYPE | |||||||
| CDD1016-S | CDD1025/1029-S | CDD1216-S | CDD1225/1229-S | CDD1516-S | CDD1525-S | |||
| Parameters | Capacity | kg | 1000 | 1500 | 2000 | |||
| Load Center | mm | 550 | ||||||
| Top Load Capacity | kg | 1000 | 1000/800/600 | 1200 | 1500/1200/900 | 1800 | ||
| Lifting height of door frame | mm | 1600 | 2500/2900/3300 | 1600 | 1600 | 1600 | 1600 | |
| Height of fork when dropping | mm | 90 | ||||||
| Turning Radius | mm | 1315 | ||||||
| Size | Length | mm | 1725 | |||||
| Width | mm | 840 | ||||||
| Static height | mm | 1975 | 1850/2050/2250 | 1975 | 1850/2050/2250 | 1975 | 1850 | |
| Lifting Door Frame Height | mm | 1975 | 3120/3520/3920 | 1975 | 3120/3520/3920 | 1975 | 3120 | |
| Standard Fork Size | 1070*160*70 | |||||||
| Outside Fork Width | 600mm | |||||||
| Inside Fork Width | mm | 280mm | ||||||
| Main Features | Lifting speed (full/empty load) | Mm/s | 80/130 | |||||
| Dropping speed (full/empty load) | Mm/s | 110/90 | ||||||
| Braking Mode | Foot Brake | |||||||
| Wheel | Front Wheel | mm | 80*70(nylon) | |||||
| Rear Wheel | mm | 180*50(nylon) | ||||||
| Motor | Lifting Motor | kw | 3.0 | ||
| Battery | v/AH | 12V/150AH | |||
| Weight | KG | 300 | 320 | 330 | 350 |
Factory Introduction
Jiangsu Zhongyan Forklift Manufacturing Co., Ltd was established in 1997, covering an area of over 21800 square meters, which is high-tech environmentally friendly enterprise specialized in research, production and marketing.
We adhere to the operation philosophy of "Quality Services, Technology Innovation, Integrity Management and Lenient towards Others "and take the advantage of leading technology, sophisticated equipment and complete testing measures to professionally study and manufacture environment friendly and high intelligent reach forklift truck, electric pallet truck etc.
We attach importance to institutionalized and standardized construction, and established such regulations as pre-delivery inspection, product recall and product exchange/compensation for defect products. We can design and customize the needed products according to the practical usage situation and customers' requirements. For more than 20 years, Zhongyan gained high reputation among customers from all over the world with its high quality and sound after-sale services.
Package
Warranty
One year warranty and the battery is 6 months warranty
