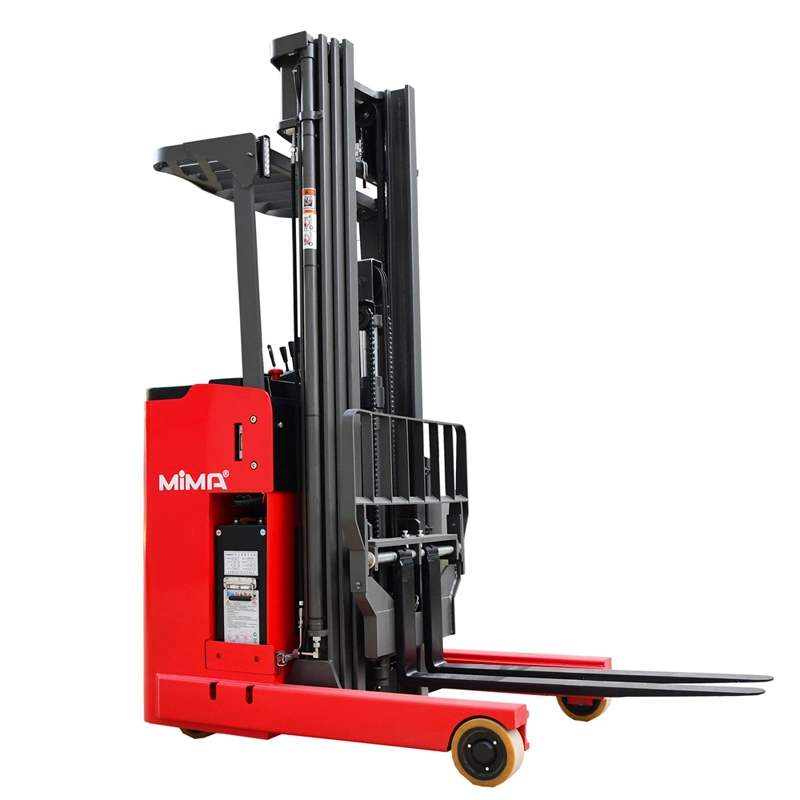

Mima Advanced Curtis controller Reach Truck Forklift with high quality
Product details
Main Features
1. Standard AC drive and EPS steering, better feel and lower energy consumption;Main Features
2. Smaller body size with smaller turning radius and right angle stacking channels;
3. With the speed limit function of turning, the automatic deceleration of turning can effectively protect the safety of goods and operators;
4. Ergonomic design: easy to operate valve stem and multi-function intelligent instrument, some models with wheel display function;
5. Advanced Curtis controller, more stable and safer.


Description | Electric reach truck | |||
Model | MF10 | MF12 | MF15D | |
Load capacity | kg | 1000 | 1200 | 1500 |
Load center | mm | 500 | 500 | 500 |
Lifting height | mm | 3000 | 3000 | 3000 |
Mast closed height | mm | 1980 | 2080 | 2080 |
Tilting angle (forward- backward) | α/β(°) | / | 3/5 | 3/5 |
Wheel type | PU | |||
Load wheel size | mm | Φ210*85 | Φ210*85 | Φ210*85 |
Drive wheel size | mm | Φ230*110 | Φ230*110 | Φ230*110 |
Balance wheel size | mm | Φ180*76 | Φ180*76 | Φ180*76 |
Reach stroke | mm | 550 | 600 | 690 |
Fork size | mm | 920*100*35 | 1070*100*35 | 1070*100*35 |
Fork outside width | mm | 220-610 | 222-750 | 222-750 |
Overall length | mm | 1868 | 2078 | 2078 |
Overall width | mm | 1000 | 1000 | 1000 |
Overall height fork raised(with backrest) | mm | 3925 | 3960 | 3960 |
Overhead guard height | mm | 2250 | 2250 | 2250 |
Turning radius | mm | 1394 | 1492 | 1580 |
Aisle width for pallet 1000*1200mm | mm | 2429 | 2502 | 2532 |
Aisle width for pallet 800*1200mm | mm | 2471 | 2537 | 2547 |
Driving speeds (Loaded/ Unloaded) | km/h | 6/7 | 7/8 | 7/8 |
Lifting speeds (Loaded/ Unloaded) | mm/s | 110/160 | 150/190 | 150/190 |
Driving motor(S2-60min) | kw | 1.5 | 2.3 | 2.3 |
Lifting motor(S3-15%) | kw | 2 | 3.5 | 3.5 |
Total weight( with battery) | kg | 1750 | 2000 | 2100 |
Brake type | Mechanical | |||
Battery voltage | V/Ah | 24/280 | 24/350 | 24/420 |
Steering system | EPS |
