Off Road Forklift , 4x4 Forklift ,Container Forklift(CE)
CPCY35 MODEL ROUGH TERRAIN FORKLIFT FEATURES
CPCY35 Terrain forklift is a product of combined technology from China and Australia.
It is equipped with XINCHAI 498BT1 engine or ISUZU for reduced noise and emission, this product uses full hydraulic mechanic automatic transmission and steering system for flexible and easy handing.
This model has a large hauling capacity from its double-axle four wheel drive for improved safety and stability. Articulated body design reduces turning radius. This model is fitted with Grammer luxurious seat for extra comfort. Movement control stick incorporates German ZF technology.
Application
CPCY 35 Terrain forklift is adaptable to various surface conditions, it is suitable to operate on soft soils, grass, terrain, mine sites and many other rugged surfaces. Extensive range of attachments is available for this model to extend its working capacity for heavy duty mining projects.
Certification
CE
BV
ISO
SGS
CPCY 35 Off road forklift specification
Item | Unit | Parameter |
| Rated load | Kg | 3500 |
| No fork | mm | 3655 |
| With fork | mm | 5055 |
| Width | mm | 1725 |
| Height of the mast | mm | 2120 |
| height of the cab | mm | 2170 |
| Full height when max lifting | mm | 5150 |
| Wheelbase | mm | 2080 |
| Front overhang distance | mm | 530 |
| Front wheel tread | mm | 1425 |
| Rear wheel tread | mm | 1425 |
| Ground clearance | mm | 145 |
| Max lifting height | mm | 4000 |
| Forward/rear tilting angle | m(°) | 6 12 |
| standard Dead Weight(no-load) | kg | 4000 |
| Full load Max Lifting Speed | mm/s | 425.5 |
| No load max falling speed | mm/s | 300 |
| Full load max falling speed | mm/s | 412 |
| Min turning radius | mm | 4760 |
| Max speed | km/h | 37 |
| Max climbing degree | % | 20 |
| Load center distance | mm | 500 |
| Engine model | xinchai | 498BT1 |

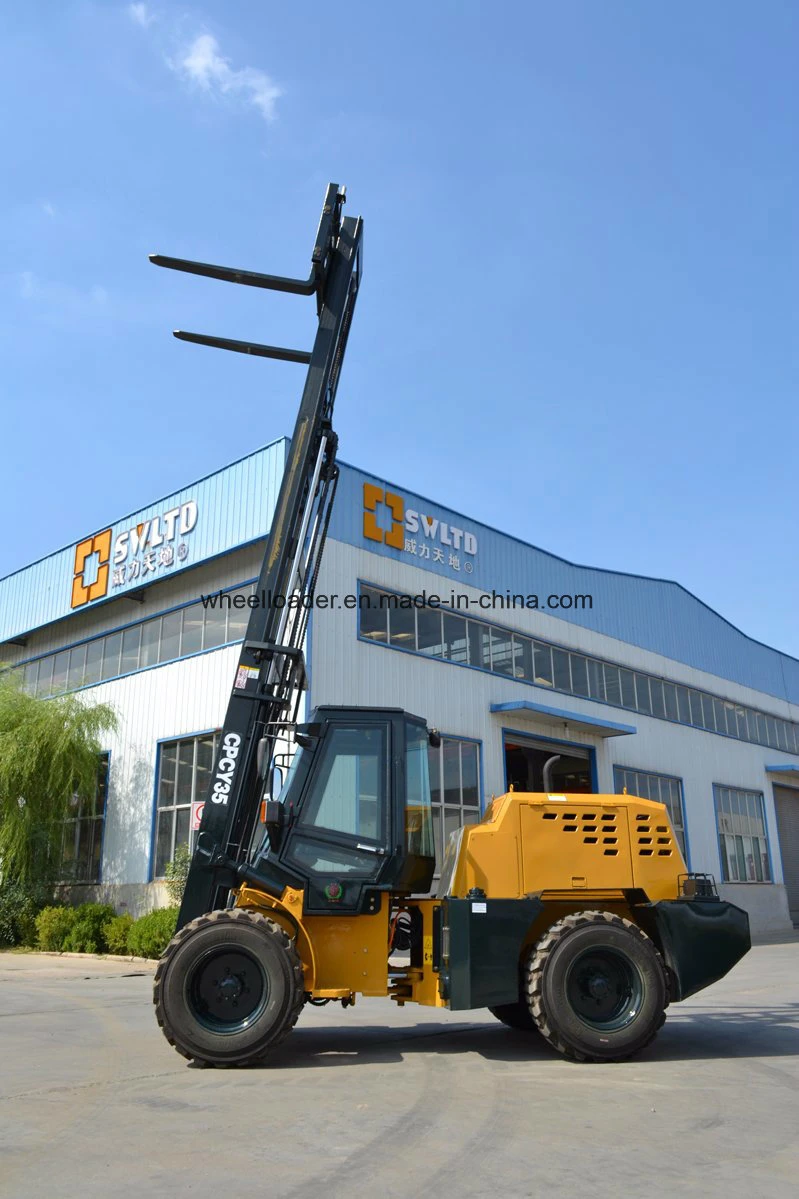

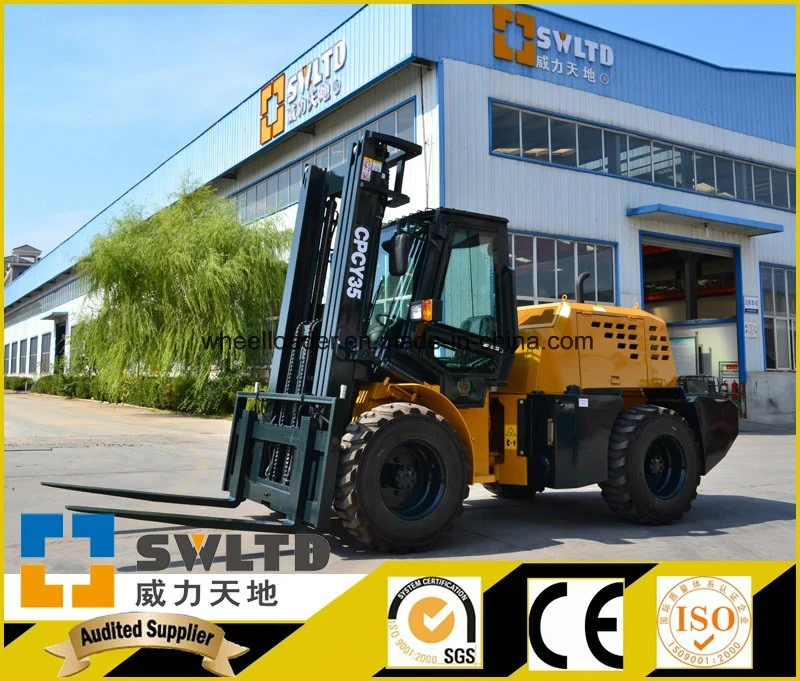

CPCY 35 PICTURES SHOW
Why choose our off road forklift?
1) The SWLTD factory is SEM & FOTON brand wheel loader structural parts OEM factory.
2) Professional international sales team, For over 10 years wheel loader and forklift export and internet repair experience to service for global.
3) A well managed quality control system, Every unit forklift with 18 hours hard testing before shipment.
4) We are care for every end user and agent feedback, drive the factory produced forklift a right way.
Q&A:
Q: Are you the forklift factory?
A: Yes, the factory Founded in 1996 year.
Location at: No.11117 Xinnanhuan road Qingzhou city Shandong province. 200 workers service for your forklift.
Q: What machine you produce?
A: We produce all type of wheel loader from 0.6 Ton to 5 Tons.
The off road forklifts 3 Tons to 10 Tons.
All of machines was CE approved.
Q: Can you supply the machine with your customer requirement?
A: We have strong technology team, are able to do adjustment design for customers according to users' most requirements.
Q: Which brand engine do you have?
A: China engine: Changchai brand, Xinchai brand, Weichai brand, JAC brand.
JV-branded engine: Dongfeng CUMMINS, Weichai DEUTZ, Wuxi Perkins, Jiangxi ISUZU.
Import engine: Indian or Japan CUMMINS, Japan YAMMAR, Japan KUBOTA.
