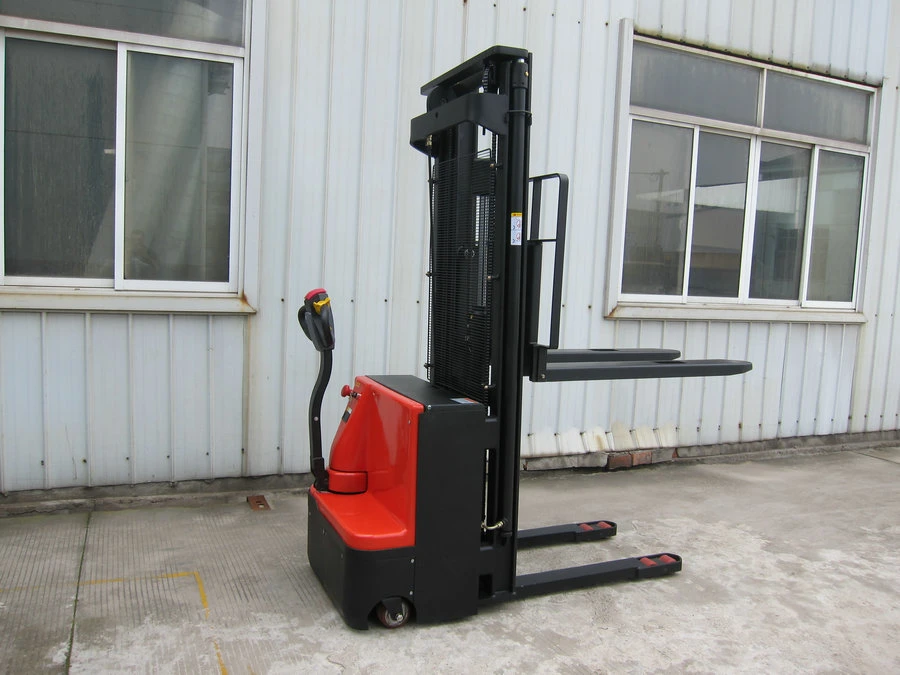

Electric forklift pallet lift 2ton 1.6m semi-electric stacker

Advantages:                                                     &

Featured Products

Advantages:
Safety and productivity:
1.AC motor with high transmission efficiency, without replacing the carbon brushes, it has a good ramp starting performance.
2Low center of gravity, good stability and smooth running.
3.Small minimum turning radius and excellent steering operating performance.
4.Using the most advanced technology of AC variable speed, which makes the motor more reliable and maintenance-free.
5.Achieving the control of both the walking speed and the lifting speed.
6.With the shock device, it greatly reduce the noise.
7..Sideway moving battery easy for replacement and maintenance.
8.Using the built-in charger which makes it easy to disassemly according to different customers' requiremet.
9.Adopting Integrated electrical system, the line is clean and beautiful, it is easy  to assembly and maintain,
10.Using environmentally friendly maintenance-free lead-acid battery.
11.Using environmentally friendly maintenance-free lead-acid battery.12.Adopting programmable control  technology with fault diagnostic function.
12.With emergency brake function improve the safety operation.
13.With low-voltage protection functions.
14.With fault diagnosis and maintenance functions.
15.A machine with many other functions, it can configure a variety of hydraulic lifting attachments.
Model    TB110S-16/25/30TB120S-16/25
Load capacity(kg)10002000
Lifting height(m)1.6m /2 m/ 2.5m1.6m / 2.5m
Max lifting height(mm2075/3033/35332075/3033
Wheel base(mm)1146.5
Front tread ( front/rear)(mm)370/490
Tyre quantity ( front /rear)(mm)4/2
Grade ability laden/unladen%5/7
Min .right angle stacking aise widthmm2155
Handle height(mm)1185/840
Overall length(mm)1785
Overall width(mm)800
Overall height(mm)2075/1825/20752075/3033
Turning radius(mm)1380
Fork dimension 1150x185x60
Driving motorkW0.75
Lifting motorkW2.2
Battery capacityV/Ah24/80
Self weightkg506/546/566596/666
Service brake Electo magnetic
Sound level at the driver's ear acc.to DIN 12503Db(A)70

Electric Forklift Pallet Lifter 2ton 1.6m Semi Electric Stacker
Electric Forklift Pallet Lifter 2ton 1.6m Semi Electric Stacker
Electric Forklift Pallet Lifter 2ton 1.6m Semi Electric Stacker
Electric Forklift Pallet Lifter 2ton 1.6m Semi Electric Stacker
Electric Forklift Pallet Lifter 2ton 1.6m Semi Electric Stacker
FAQ:

Q1: How long is the  Warranty for RUMLIFT product?
A1: RUMLIFT provides 24 months or 2500 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually RUMLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3:  How about the continuous working time for the electric series forklifts & Stackers ? And How long time to charge the battery full ?


A3: RUMLIFT battery continuous working time is around 4-6hours( depend on battery volume and people operation ), when the red light of dashboard flashing ,need to charging ,about 5 hours can be finish ,RUMLIFT'S charge is intelligent,once the battery is full , will stop to charging .

Q4 How about the battery working life ?
A4: our Battery is from DIN standard battery ( Germany technology), can be working 6 years without any problem.

Q5: Can RUMLIFT provide customized products? OEM products or ODM products?
A5: Yes, RUMLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.

Q6: What's the specification of the chargers?
A6:  Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases,50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q7: Could we request our own color for the products?
A7: Yes, of course,We have orange red ,red ,white ,green, blue and so on , you just need to offer us the RAL code.


Why choose RUMLIFT ?
Q1: How long is the  Warranty for RUM product?
A1: RUM provides 24 months or 2000 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually RUM producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3: Can RUM provide customized products? OEM products or ODM products?
A3: Yes, RUM  can provide customized products per your request, both OEM and ODM are  acceptable. We do a lots of non-standard products, welcome your special reqeust.

Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
