Product specification
Product Features
1. Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2. Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.
3. Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.
4. Bigger and non-slip step make operating convenient and safe.
5. The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition.
6. Enclosed operator cabin with OPS suspension seat.
Our factory
Exhibition and customers

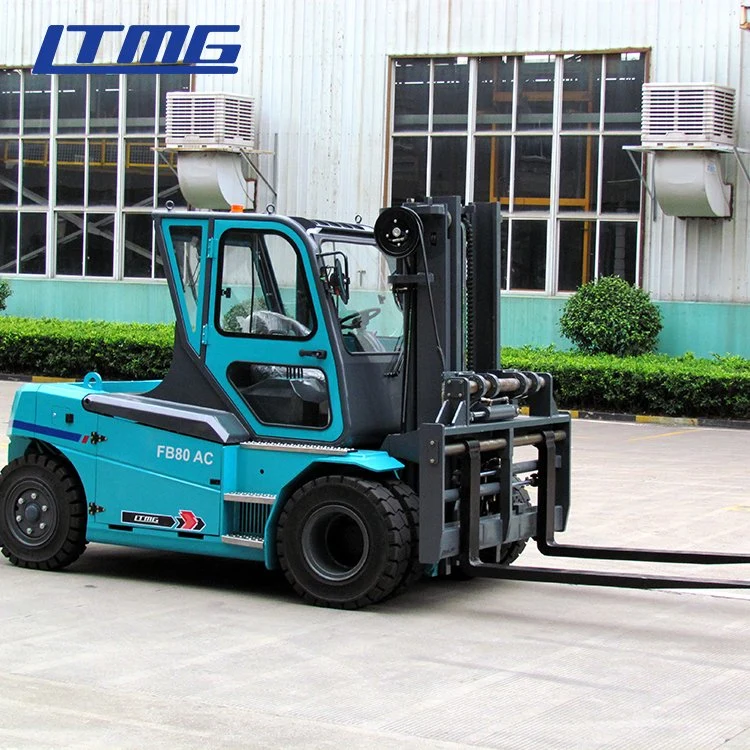

| The specification of LTMG 8 ton electric forklift | |||
| General | Model | FB80 | |
| Rated Capacity | kg | 8000 | |
| Load Centre | mm | 600 | |
| Lift Height | mm | 3000 | |
| Fork Size (L×W×T) | mm | 1220×150×70 | |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 | |
| Characteristic&Dimensions | Length to face of fork (Without fork) | mm | 3780 |
| Overall Width | mm | 2200 | |
| Mast Lowered Height | mm | 2600 | |
| Mast Extended Height (With backrest) | mm | 4400 | |
| Overhead Guard Height | mm | 2500 | |
| Turning Radius (outside) | mm | 3350 | |
| Front Overhang (Wheel center to fork face) | mm | 685 | |
| Tread (Front/Rear) | mm | 1650/1718 | |
| Ground Clearance (Bottom of mast) | mm | 200 | |
| Wheelbase | mm | 2450 | |
| Fork Spread (Min./Max) | mm | 300/2000 | |
| Performance | Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 300 | |
| Max. Gradeability | % | 10 | |
| Service Weight | kg | 12780 | |
| Front Tire | 9.00-16-14PR | ||
| Rear Tire | 8.25-15-14PR | ||
| Driven | Driven Motor | kw | 14×2 |
| Lift Motor | kw | 25×2 | |
| Battery Standard | V/Ah | 80/1150 | |
| Controller Manufacturer | CURTIS AC | ||
| Operating Pressure for Attachment | Mpa | 18 | |
Product Features
1. Equipped with original imported American Curtis electric control system; High voltage and large capacity battery can supply the forklift with strong power; DC or AC motors are optional according to customers' requirements.
2. Designed to work in the rain, electric forklift can be used in various kinds of wet and dry environments.
3. Ergonomics Adjustable seat:Designed according to the ergonomic principles, make the operation much comfortable and also relieves the fatigue caused by long continuous operation.
4. Bigger and non-slip step make operating convenient and safe.
5. The standard LED lamps and warning lights make it safer ,more energy efficient and create better working condition.
6. Enclosed operator cabin with OPS suspension seat.
Our factory
Exhibition and customers
After-sale service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
