Hot Selling Full Power Walkie Talkie Forklift Electric Pallet Stacker with CE

High Quality Hydraulic Electric Battery Operated Pallet StackerThe Electric Pallet Stacker is a powered drive, powered lift stacker used for bulk material handling, especially moving and lifting the regular pallets to a certain height in the warehouse. The ergonomic handle features throttle with adjustable forward and rever

Featured Products



High Quality Hydraulic Electric Battery Operated Pallet Stacker


The Electric Pallet Stacker is a powered drive, powered lift stacker used for bulk material handling, especially moving and lifting the regular pallets to a certain height in the warehouse.

The ergonomic handle features throttle with adjustable forward and reverse speeds, lift & lower controls, and a safety belly switch. It is ideal for light use in narrow warehouse environments and occasional stacking and order picking. Electric Pallet Stacker is available in different capacities and specifications as per client's requirements.

Data Sheet:
Model No.SL10-25SL10-31SL15-25SL15-31
Drive UnitElectric
Operation TypePedestrian
Rated Load Capacity (KG)10001500
Load center MM600
Overall Length (MM)1924
Overall Width (MM)840
Overall Height (MM)1825212518252125
Lifting Height (MM)2500310025003100
Height (MM)-Fork Face90
Fork Size (MM)1150*160*56
Max Fork Width (mm)540/680
Min. Turning Radius(mm)1475
90°Stacking Aisle(MM) (1000*1200 Pallet)--Ast2350
Driving Motor (KW)0.75
Lifting Motor (KW)2.0
Battery(Ah/V)100/24
Service Weight (w/o battery)KG560593560593
Battery Weight(kg)45

High Quality Configurations:
1. CURTIS controller from America
2. WINNER pump station from Taiwan
3. 240Ah large capacity battery
4. REMA plug from Germany
5. Reverse button, press this button, the truck will travel in reverse
6. Press the red button in an emergency, cut down all the power, stop the truck
7. Balance wheel with cover, protect the operator
8. Large maintenance room
9. With free lifting height, when forks raising, mast is still

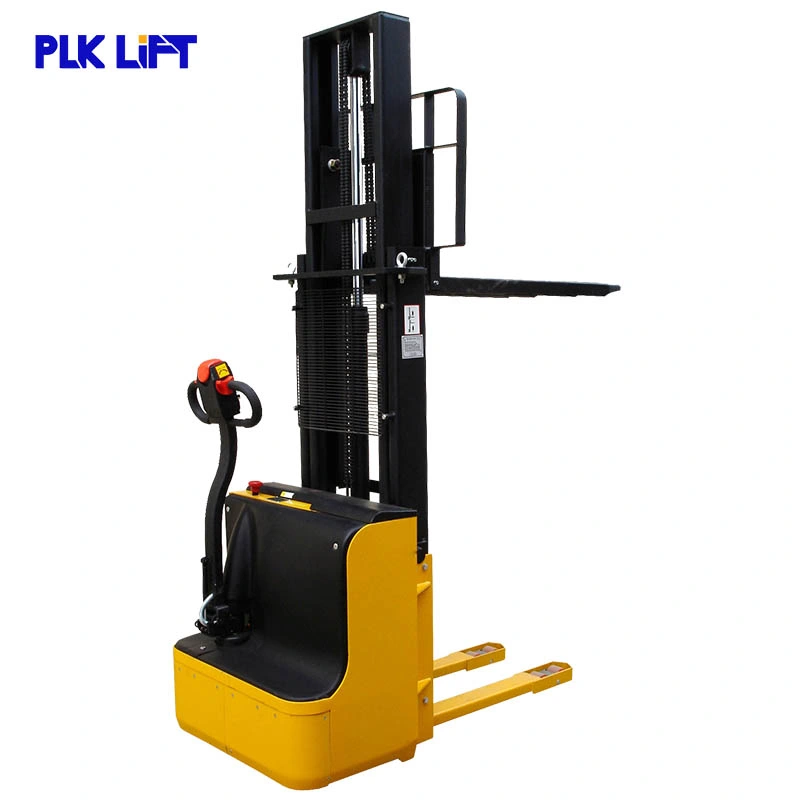

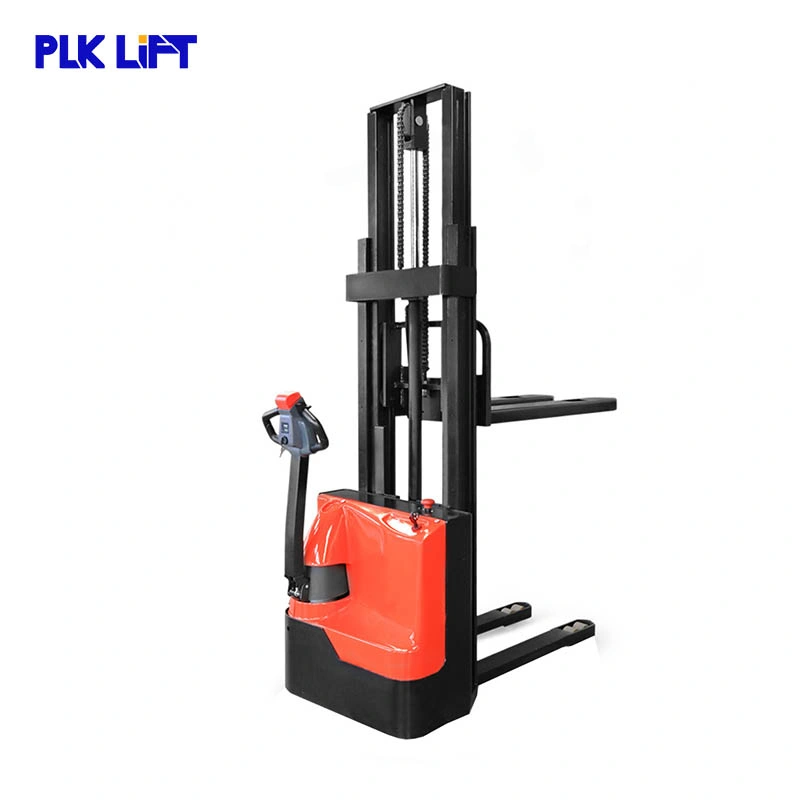

Photos Display:
Hot Sales Full Powered Walkie Forklift Electric Pallet Stacker with Ce
Hot Sales Full Powered Walkie Forklift Electric Pallet Stacker with Ce
Real Orders Display:
Hot Sales Full Powered Walkie Forklift Electric Pallet Stacker with Ce

Our Factory: welcome to visit our factory and build good relationship.
Hot Sales Full Powered Walkie Forklift Electric Pallet Stacker with Ce
