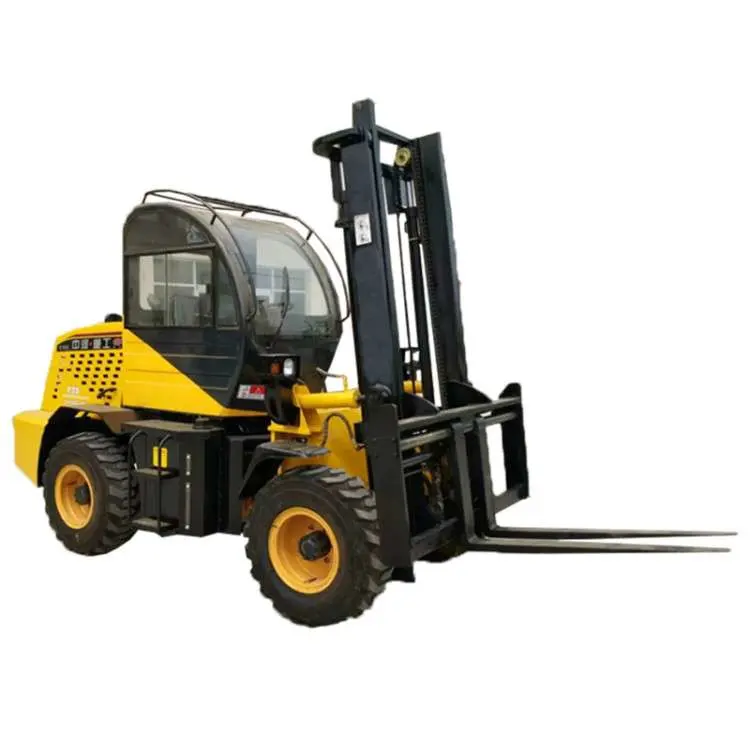

| Product Name | off-road articulated forklift Off-road Rough All Terrain Forklift |
| Fuel type | Diesel |
| Min. Lifting Height | 3000mm |
| Max. Lifting Height | 6000mm |
| Fork Length | 12200mm |
| Fork Width | 150mm |
| General | 1 | Name |
| Diesel forklift | |||
| 2 | Power type |
| Diesel | ||||
3 | Rated capacity | kg | 5000 | ||||
4 | Load center | mm | 500 | ||||
5 | Operator type |
| Seated | ||||
6 | Tyre type | Front/Rear |
| Pneumatic | |||
7 | Number of wheels(X=driven)) | Front/Rear |
| 2 X /2 | |||
Dimensions | 8 | Lifting height | mm | 3000 | |||
9 | Free lift height | mm | 145 | ||||
10 | Fork size | LxWxT | mm | 1070x125x25 | |||
11 | Mast tilt range | F/R |
| 6/12 | |||
12 | Overall Length(Without fork) | mm | 2698 | ||||
13 | Overall width | mm | 1225 | ||||
14 | Mast lowered height | mm | 2070 | ||||
15 | Mast extended height | mm | 4250 | ||||
16 | Overhead guard height | mm | 2090 | ||||
17 | Turning radius(Outside) | mm | 2400 | ||||
18 | Fork overhang(Wheel center to fork face) | mm | 498 | ||||
19 | Min.right angle stacking aisle width (Add load length and clearance) | mm | 2885 | ||||
20 | Wheelbase | mm | 1700 | ||||
21 | Tread | Front | mm | 1000 | |||
22 | Rear | mm | 970 | ||||
23 | Ground clearance | Lowest | mm | 135 | |||
24 | Wheelbase center | mm | 140 | ||||
Weight | 25 | Self weight | kg | 4280 | |||
26 | Wheel distribution | Full load | Front | kg | 6455 | ||
27 | Rear | kg | 825 | ||||
28 | No load | Front | kg | 1720 | |||
29 | Rear | kg | 2560 | ||||
Power & Transmission | 30 | Engine | Model |
| C240-PKJ30 | ||
(EUIII) | |||||||
31 | Rated output/r.p.m | Kw | 34.6 | ||||
/rpm | 2500 | ||||||
32 | Rated torque/r.p.m | N.m | 139 | ||||
/rpm | 1800 | ||||||
