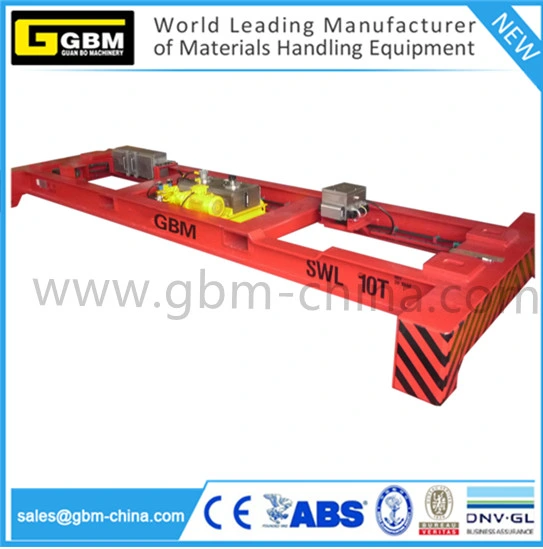

20ft/40ft Semi Auto Container Spreaders for easy operation /light dead weight
This semi auto container spreader is easy to operation. when loading ,the middle rope of the spreader will be strained and the pins will turn around and lock the container.
Semi-automatic spreaders are fixed to the hooks of gantry, bridge and portal cranes.
Container Spreader Features
1. Light weight
2. Semi automatic
3. Designed for use with cinventional ships and harbour cranes
4. Reliable with simple locking/unlocking mechanism and all four twist lock activated throught one manually operated handle
5. Suspendend on the crane by two wire ropes
6. The spreader shall have corner guides as detacheable flippers
Available with no impetus container spreaders, semi-automatic container spreader, telescopic container spreader, empty container spreader box, double-container spreader, container spreader devices and so on.
Main Technical date for 40'container spreader:
Application | ISO 40' container |
Rated lifting laod | 35t |
Spreader dimension | L: 11985mm W: 2260mm |
Load of lifting lugs at four corner | 8t× 4 |
Dead weight | 3050± 2%Kg |
Guide plate | 10tx4 |
Twistlock rotation | 90 < 1.5S |
Plate torque | 1200Nm |
Twistlock code | ISO floating twistlock, mechanical driven |
Our Service
Act as a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customised project for clients.
b: Design and manufcture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a:Assist clients to prepare for the construction scheme.
b:Install and debug equipment.
c:Train the first-lin operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f:Provide techical exchanging.
If you are looking for any spare parts for your semi-automatic container spreader,we've got you covered.please do not hesitate to contact me.
Pls kindly send us your detailed specifications as follow if you are interested in our spreader:
1.What's the model of semi-automatic container spreader you want? 20 feet or 40 feet
2.What's the maximum lifting weight of the semi-automatic container spreader? SWL
3.What's the working environment?on ship or on port ?
We will offer you the best suitable grab with best price and quality. These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!
