Why choose Delong:
1. DELONG original factory. Factory price
2. 2 years long Warranty
3. OEM/ODM is acceptable
4. No MOQ Request
5. Fast delivery time
6. Nice quantity with certication
7.ONLINE PAYMENT
8. Made of powerful brand Grade A lifepo4 battery cell
9. High current charger optional
10.With advanced BMS (Battery Management System)
Advantage:
1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life.
2000 Cycle Times 85% DOD
5000 Cycle Times 65% DOD
8000 Cycle Times 40% DOD
3. Bulit-in smart BMS with multiple protection and communication functions.
4. Wide working temperature range and high reliability.
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters.
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.
How Application Case
1.Electric vehicle
- Golf cart battery/Low-speed electric car battery/ Tricycle Battery /Motorcycle battery/Ebike Battery
2.Energy Storage
-Solar-Wind Power System / City Grid (On/Off) / Telcom Base / Computer Server Center

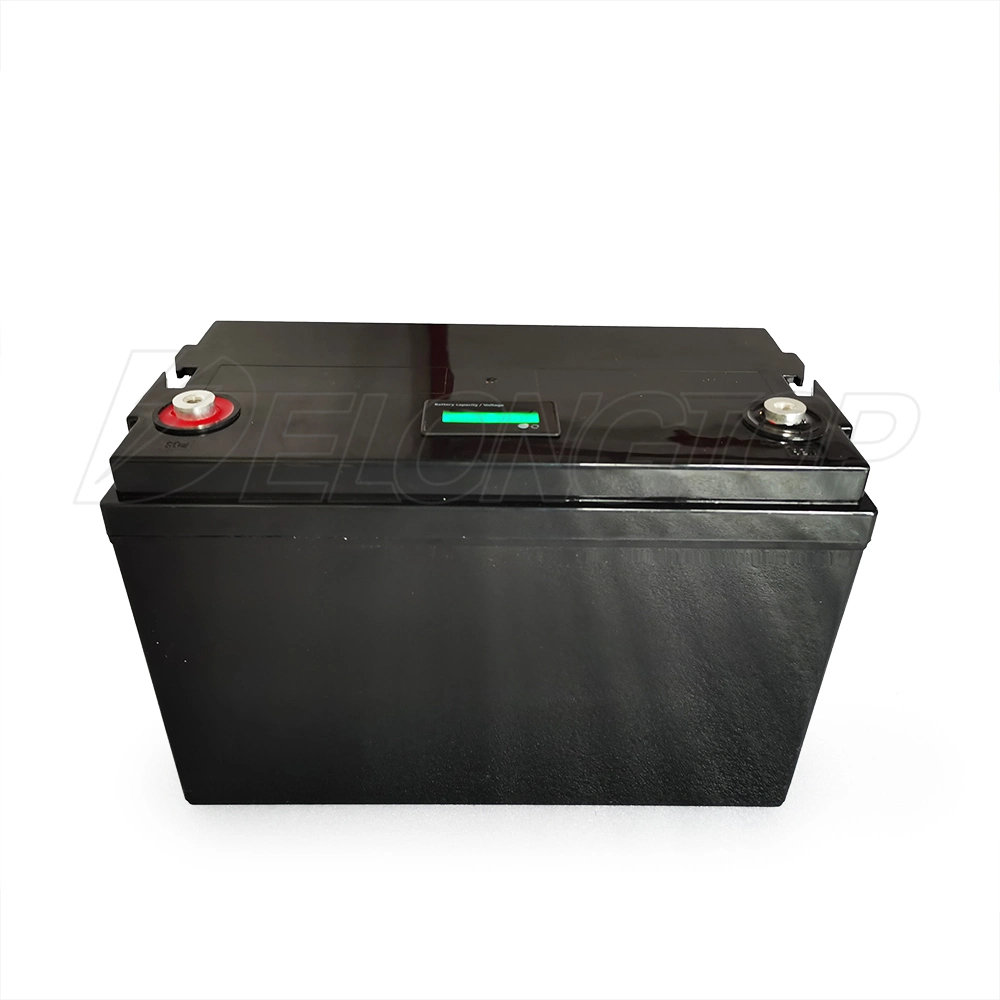

Name | 12.8V 100AH Lifepo4 battery |
Nominal voltage | 12.8V |
Nominal capacity | 100ah |
Battery type | Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell |
Model | DL-12100 |
Battery configation | 4S1P or 4S2P |
Internal resistance | ≤420mΩ |
End of charge voltage | 14.6V |
End of charge current | 200mA |
End of discharge voltage | 9.2V |
Charge method | CC/CV(constant current/constant voltage) |
Max continuous charge current | 50A/100A |
Max continuous discharge current | 100A |
Max pulse discharge current | 200A/10S |
Net weight | 100ah: 11.5 kg |
Case material | ABS or metal case or stainless steel case |
Case dimension | 360*270*190mm or customized |
Warranty | 2 years |
BMS protect | Overcharge,Balance, Over-discharge,Over-current, Short-circuit etc |
Terminal Type | M8 or anderson or another bolt screw |
Lifecycle | 2000 times, 85%dod, 3000 times, 80%dod 5000 times , 65% dod, 8000 times, 40% dod |
Charge temperature | 0~45ºC |
Discharge temperature | -20~60ºC |
Storage temperature | -10~45ºC |
Certificate | CE, RoHS ,MSDS and UN38.3 certification |
Parallel assembly | up to 10 items |
Enclosure Protection | IP56 or customized IP67 available |
Product Show:
Application:
Product Instructions
1.Battery cell : prismatic lifepo4 3.2V 100AH with bus bars
2.ABS Case or Metal casing housing strong solid case
3.Strong BMS system board 4S/8S/16S-100A/200A
4.LED/LCD Screen voltage meter Display upgrade version
5.M8, Andersen or other
Many Good Feedbacks:
Packing and shipping:
Packaging: International standard packaging or as customers required
Shipping: a.Sample order:3-10 days by plane
b.Bulk order:15-30 days by sea
Payment: We accept T/T , Paypal, so on.
Company information:
Shenzhen Delong Energy Technology Co.,Ltd
is a professional energy supplier in china focusing on the manufacture,research and sale
of lithium ion battery products. It was established in 2006 and becoming the leading player through several years development. Our
product are widely applied on common digital devices battery, high discharge rate battery,powerful electric vehicles battery, low
and high temperature lithium ion battery power storage and back-up battery pack etc.
