Manual Hydraulic Lift Loading Dock Equipment Container Truck Lifting Ramp

Manufacturer Steel Forklift Mobile low price dock leveller Dock Leveler hydraulic boarding bridge is a special auxiliary equipment for fast loading and unloading of goods. Its height adjustment function makes a bridge between the truck and the cargo platform of the warehouse. The trucks such as forklifts can directly e

Featured Products

Manufacturer Steel Forklift Mobile low price dock leveller

Dock Leveler hydraulic boarding bridge is a special auxiliary equipment for fast loading and unloading of goods. Its height adjustment function makes a bridge between the truck and the cargo platform of the warehouse. The trucks such as forklifts can directly enter the truck to carry out the batch of goods. Loading and unloading, only one person can work, and the cargo can be quickly loaded and unloaded. Boarding bridges enable companies to reduce labor, improve work efficiency and gain greater economic benefits.

1. Data Sheet:
Model No.DCQ-6DCQ-8DCQ-10DCQ-12
Load Capacity (t)681012
Platform Size (mm)L2000/2500*W2000
Lip Width (mm)400
Travel Height (mm)Updip300
Downdip200
Motor Power (kw)0.75
Pit Size (mm)2080/2580*2040*600
Platform Materials6mm checked steel plate Q235B8mm checked steel plate Q235B
Lip Materials14mm Q235B plate16mm Q235B plate18mm Q235B plate20mm Q235B plate
Lifting Frame120×60×6 profile steel160×80×6 profile steel200×100×6 profile steel200×100×6 profile steel
Bed Frame120×60×5 profile steel120×60×6 profile steel120×60×6 profile steel120×60×6 profile steel
Shaft PinØ30 steel rod,30×50 welded tube
Cylinder Support Plate12mm Q235B plate
Cylinder Pin45# Ø50 rod steel*4
Hydraulic Oil PipeDouble wire mesh high pressure tubing 2-10-43MPa
Pump StationCombined type CDK series 0.75KW
Electrical applianceDelixiDelixiDelixiDelixi
Hydraulic OilML series antiwear hydraulic oil 6L

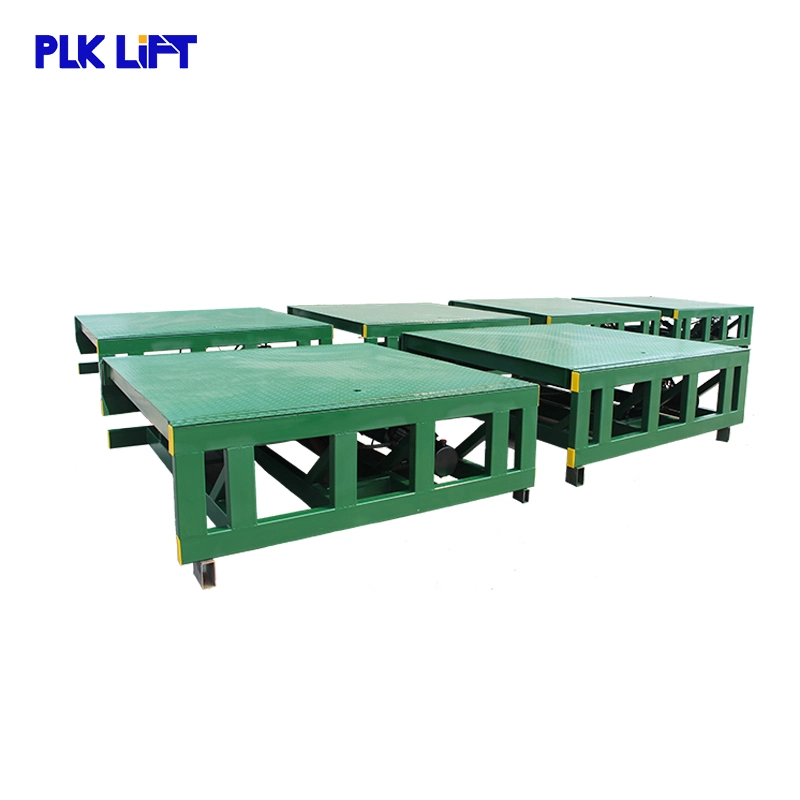

2. Photos Review:
Manual Hydraulic Lifter Loading Dock Equipment Container Truck Lift Ramp

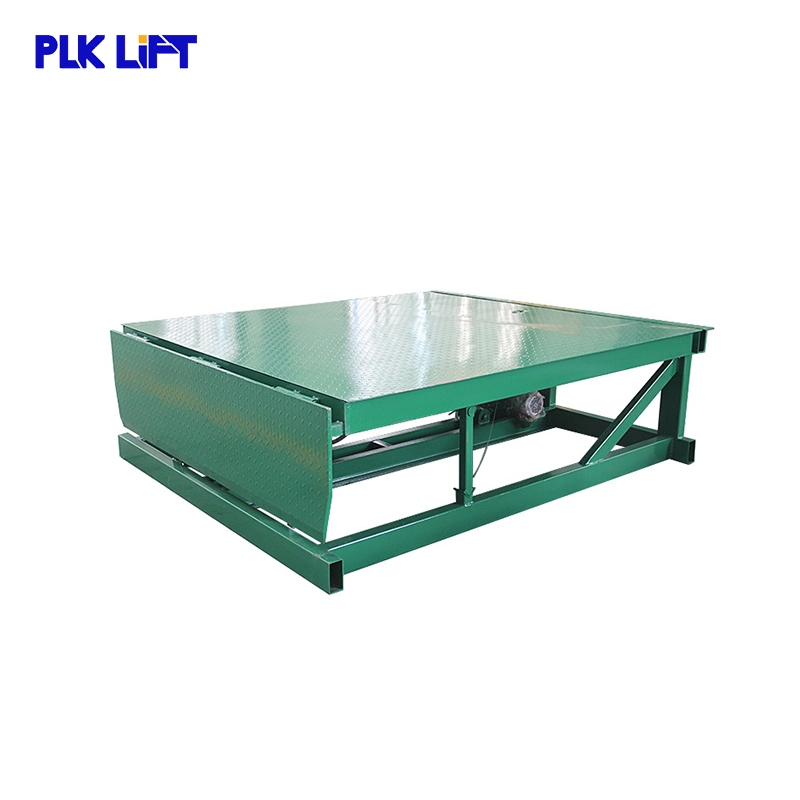

3. Details Disply:
Manual Hydraulic Lifter Loading Dock Equipment Container Truck Lift Ramp
4. Real Orders Show. Applicable to all kinds of vehicles on the loading and unloading site. Loading/unloading platform, lifting platform.
Manual Hydraulic Lifter Loading Dock Equipment Container Truck Lift Ramp
5. Welcome to visit our factory and place the order with us.
Manual Hydraulic Lifter Loading Dock Equipment Container Truck Lift Ramp
