Product Description
Refuse Collection Transport Hook Lift Dongfeng 3CBM 5CBM Hooklift Garbage Truck
1. Separated Truck & Container, One Truck Can Carry Many Garbage Containers in Short Time.
2. Design for Heavy Populated Area, including School, Office Area, Street, Park, Residentail Area, etc
3. One Man & One Key Control for both container loading & Garbage Discharging.
4. Large Volume Garbage Container, up to 3CBM, 4CBM, 5CBM,6CBM, 7CBM, 8CBM, 10CBM.
5. Garbage Box are Made of Strong Steel Material, can Last fro Long Time.
6. Garbage Box are Designed Rust Resistance & Easy to Clean, can take High Temperature & Humdity.

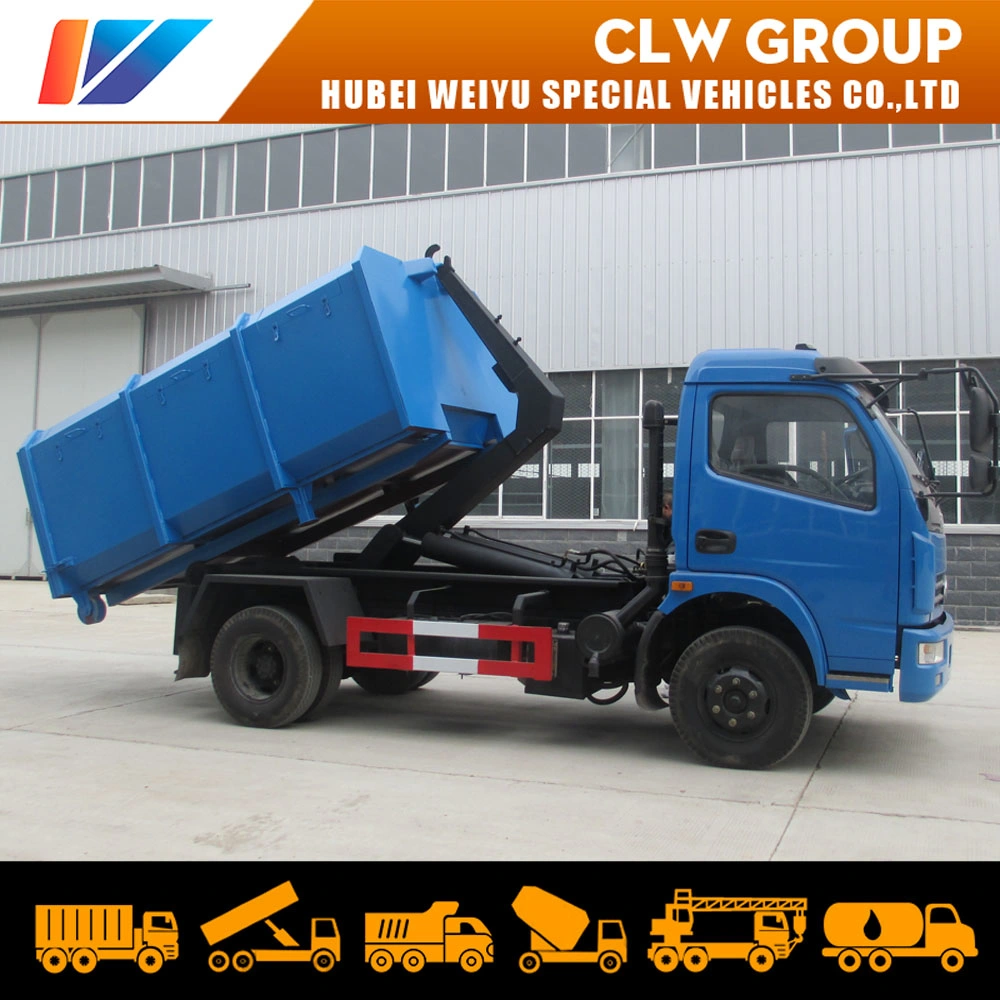

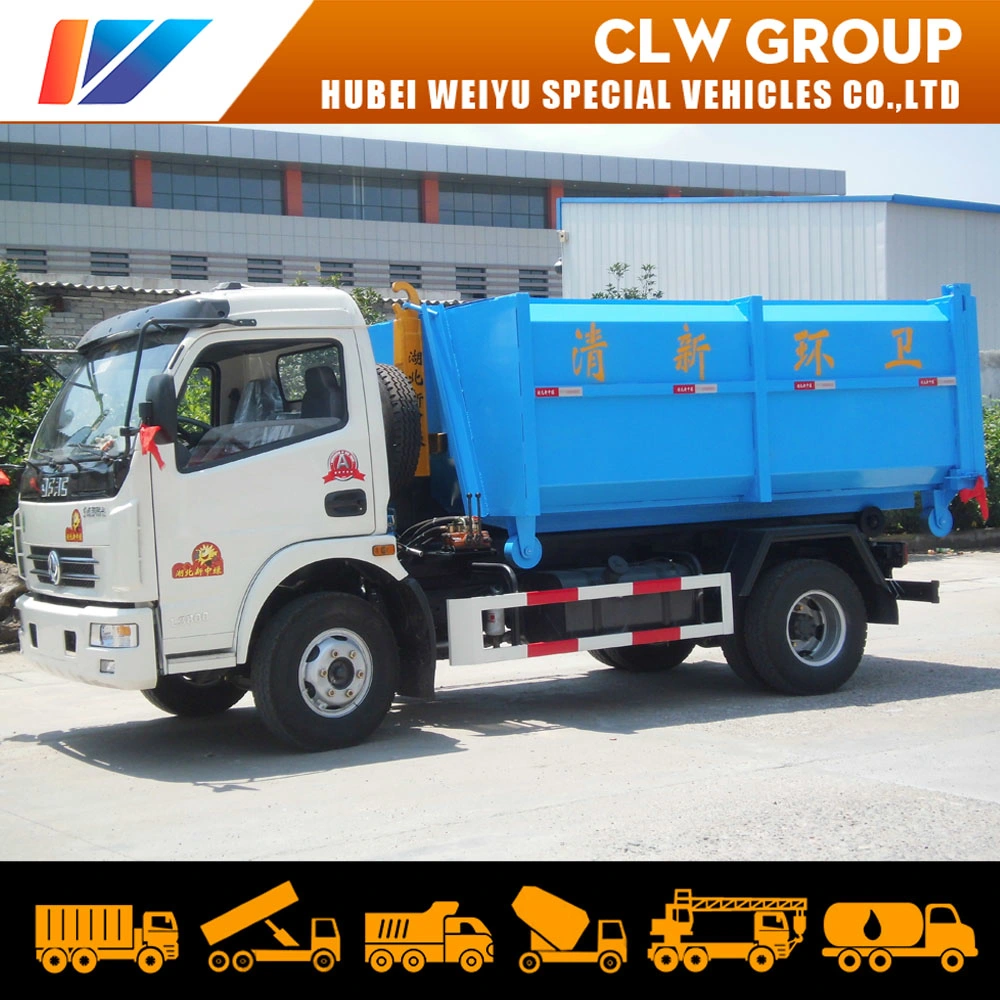

Product Photos:
Bulk Delivery
Regular Overseas Exhibition and After Sales Service
Please Contact Eric in Below Ways:
Refuse Collection Transport Hook Lift Dongfeng 3CBM 5CBM Hooklift Garbage Truck
1. Separated Truck & Container, One Truck Can Carry Many Garbage Containers in Short Time.
2. Design for Heavy Populated Area, including School, Office Area, Street, Park, Residentail Area, etc
3. One Man & One Key Control for both container loading & Garbage Discharging.
4. Large Volume Garbage Container, up to 3CBM, 4CBM, 5CBM,6CBM, 7CBM, 8CBM, 10CBM.
5. Garbage Box are Made of Strong Steel Material, can Last fro Long Time.
6. Garbage Box are Designed Rust Resistance & Easy to Clean, can take High Temperature & Humdity.
Specifications Detail of the Truck
| Overall dimension | 6815x2120x2410 | Curb weight |
| Box volume | 6cbm | |
| Chassis parameters | ||
| Chassis model | EQ1050TJ12D3 | Chassis brand |
| Wheelbase | 3800mm | Front /Rear track |
| Front/rear suspension | 1210/1805mm | Approach/departure angle |
| Max speed | 95Km/h | Chassis manufacturer |
Cab | Configuration | Single row cab,allowable 3 passenger,with broken gas brake, direction help |
| Color | White ,other color is optional | |
| Engine | Model | CY4102-C3C |
| Emission | Euro 3 | |
| Type | Vertical,inline,water-cooled, four-stroke, direct injection | |
| Rated power | 120hp | |
| Displacement | 3856ml | |
| Manufacturer | Dongfeng Chaoyang Power Co., Ltd. | |
| Tire | Size | 8.25-16 nylon tire |
| Numbers | 6+1 nos | |
| Front axle | 2.5ton | |
| Rear axle | 4.5ton | |
| Drive form | 4x2 | |
| Suspension | Multi leaf springs | |
| Rated voltage | 24V ,DC | |
| Transmissions | Five speed transmission ,5 speed forward 1 reverse | |
| Steering device | Power assisted steering | |
| Steering wheel | Left hand drive | |
| Upload structure parameters | ||
| Box volume | 6cbm ~8CBM | Material |
| Thickness | Side:3mm Bottom:4mm | Color and logo |
| Standard configuration | With a trash box , domestic cylinder and multi-valve | |
| Optional configuration | Can be equipped with several trash boxes | |
